The Drake Raceboat Series

Beauty and speed for the pleasure rower at 18' and 20'

Just out on the web! See the Small Boats Monthly article and the Off Center Harbor videos on the Drake Raceboat 18
Drake Raceboat Plans
125.00

Plans come as a digital download via email upon receipt of payment.

Add To Cart

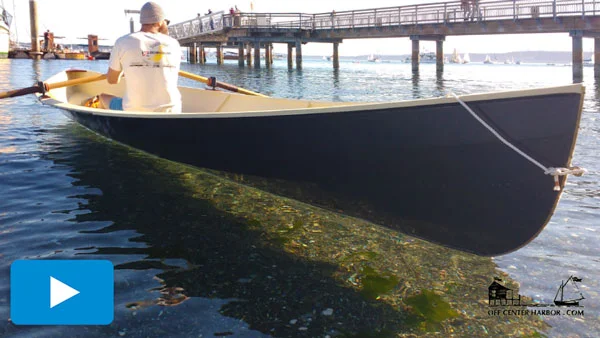

 You can click here to watch an excerpt of their video about this boat on  OffCenterHarbor.com , and please consider supporting their good work with a membership.

You can click here to watch an excerpt of their video about this boat on OffCenterHarbor.com, and please consider supporting their good work with a membership.

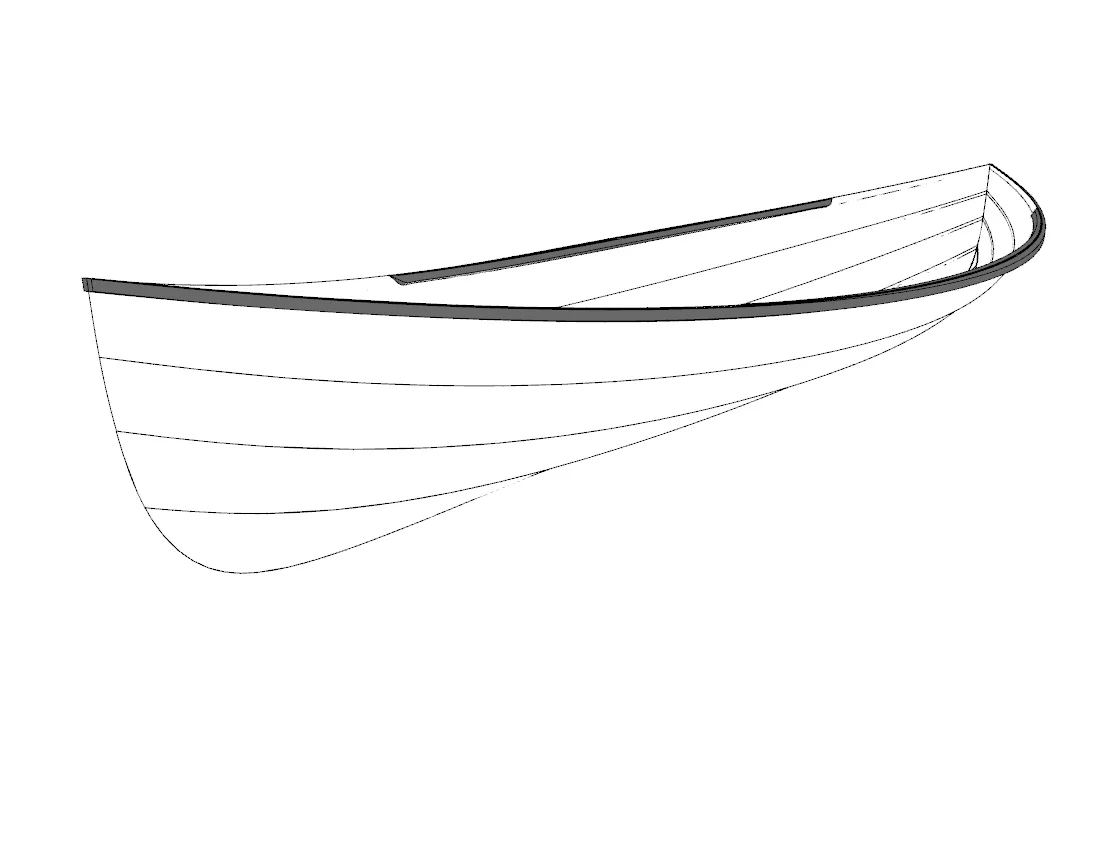

DRB PERSPECTIVE OF BOW

The Drake R.B. will not only be fast, but it will be beautiful.

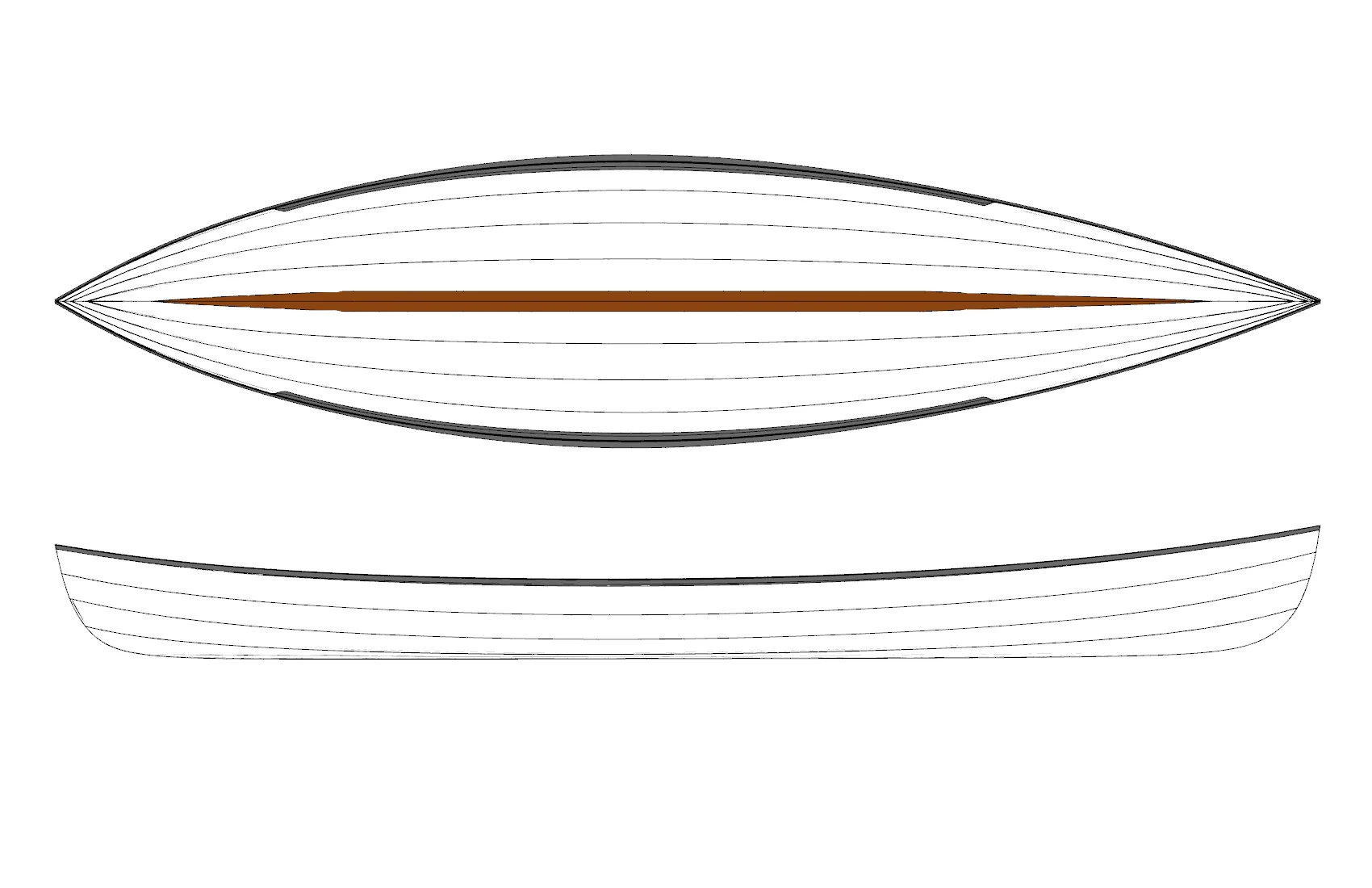

DRB HULL PLAN & PROFILE

The plan view shape shows the designed fine entry and fullness aft which allows for the greater speeds in race conditions. The brown strip is a inner keel. The gray gunwales show the wide outer rails which put the oarlocks further outboard.

While the Drake Raceboat is designed “for the greater speeds in race conditions,” you don’t have to compete to appreciate the boat.
— -Chris Cunningham, Small Boats Monthly online

SPECIFICATIONS

LOA   18' 3" / 20' 0"
LWL   17' 0" / 18' 6"
Beam   4' 0" for both models
Draft    3-3/4" / 4"
Depth amidships   13-3/4" for both
Displacement 306 lbs / 347 lbs

KEY FEATURES

- Hull shape that is optimized for speed under oars

- Hull construction that prioritizes lightness

- Laminated gunwales for strength and stiffness

- Can accept the Poseidon sliding seat rig as a "drop-in" unit



The Drake Raceboat design process began well after the original Drake 17 was launched and tested. It was an endeavor to develop a go fast version, that prioritized lightweight construction, and used a gorgeous, laminated gunwale design to for a stiff, strong hull shape that resisted deflection under oars.

In designing this boat, I started with the numbers. Using the winning finishing times from the venerable Blackburn Challenge race around Cape Ann, I drew a boat that would compete with these winning rowers. A race like the Blackburn also demands a seaworthy boat. For my target rowers, the Blackburn wasn't necessarily the point, but speed and seaworthiness were important. Of course, in the battle of trade-offs, some stability, comfort, and seaworthiness -- traits of the Drake 17 (a sedan version) -- are sacrificed in order to provide speed. But it worked very well! The Drake Raceboat sea trials (conducted in Puget Sound) were the most successful of any of my boats. For the first time ever, I returned from a few days of sea trials without feeling any need to change a thing. She was just right.

The DRB 20-foot model was designed for Nate Rooks, a Stanford heavyweight crew rower and coach, who wanted a boat to race in the Seventy-48 race. This grueling race required more of a boat than a shell, but not one that sacrificed speed. The race waters are open water and waves are a fact of life. The seaworthy, hull shape of the Drake Rowboats was just what he needed. He finished 11th out of nearly 200 races; the only people in front were tandem rowers and guys in surf skiis.

To get to the 20-foot model, I stretched the 18-footer, fined the ends slightly, and gave her a little more freeboard. I also made the Poseidon sliding seat rig -- the best in its class - fully drop-in to the kit for a perfect fit. The ergonomics of the rowing station have been perfected.

To seasoned rowers, the DRB feels pretty stable but to a new rower she feels tippier than the Drake 17. Her light weight is immediately noticeable on the water. It takes a little while to get used to it, but then it feels wonderful. The raceboat tracks great and when powered up continues to track like an arrow without any noticeable deviation even in a cross wind, a very hard thing to get right in a good rowboat.

The hull is thin skinned -- 4mm Okoume plywood -- planked over molds and two ring frames. Without any stem or sternpost, the double ends of this boat are glued together with a fillet and a thin keelson in between. The laminated gunwales are a thing of beauty and offer a good challenge for the builder. The strongback, molds, and frames are all part of the kit and self-jig using the usual suite of features found in our kits. The Drake Raceboat is a good project for someone with a boat under their belt and some experience with lapstrake designs.

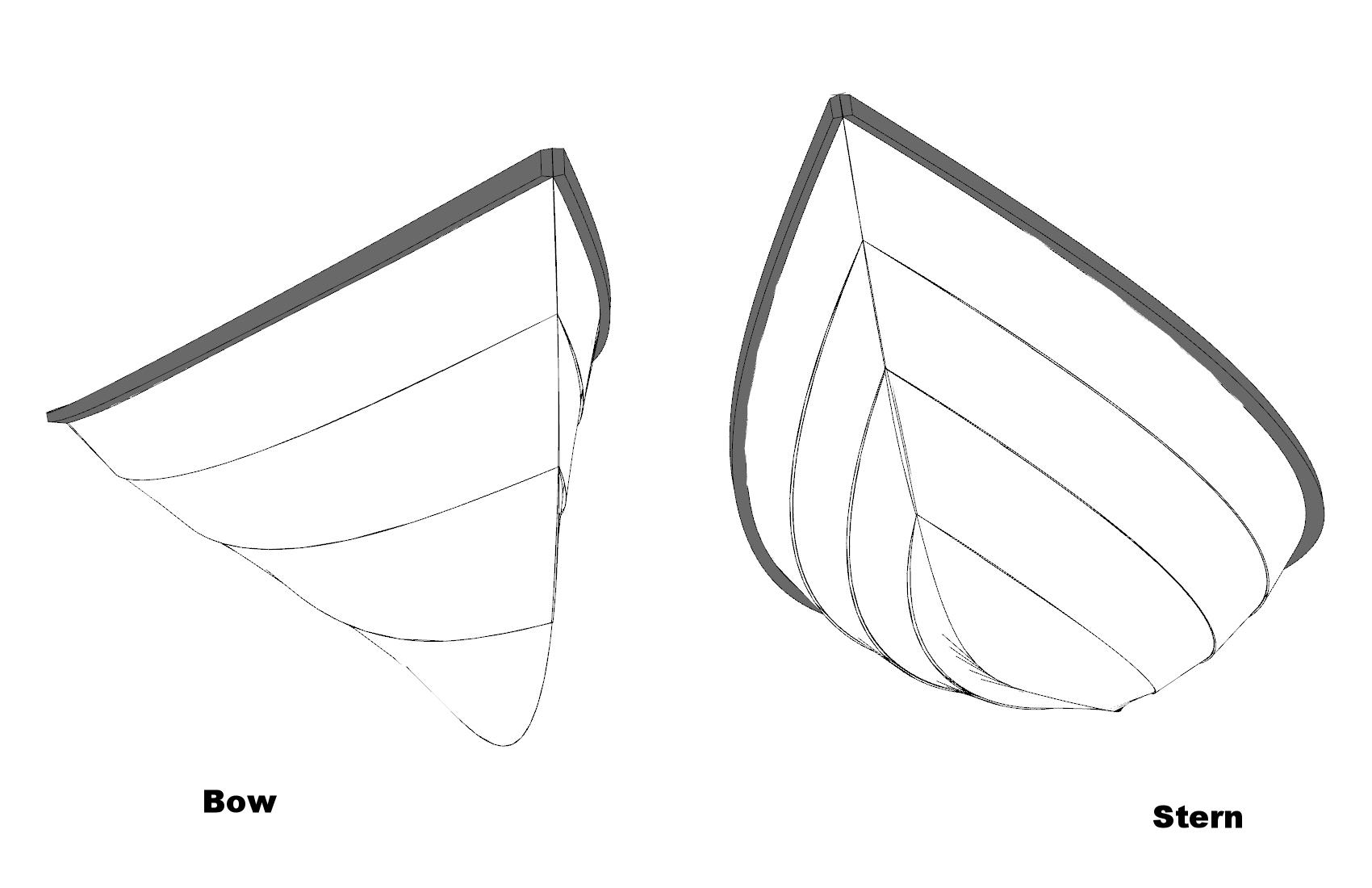

DRB HULL PERSPECTIVES

The bow view shows a very fine entry and the stern view shows the fullness in the aft end which will support rowing at higher speeds.

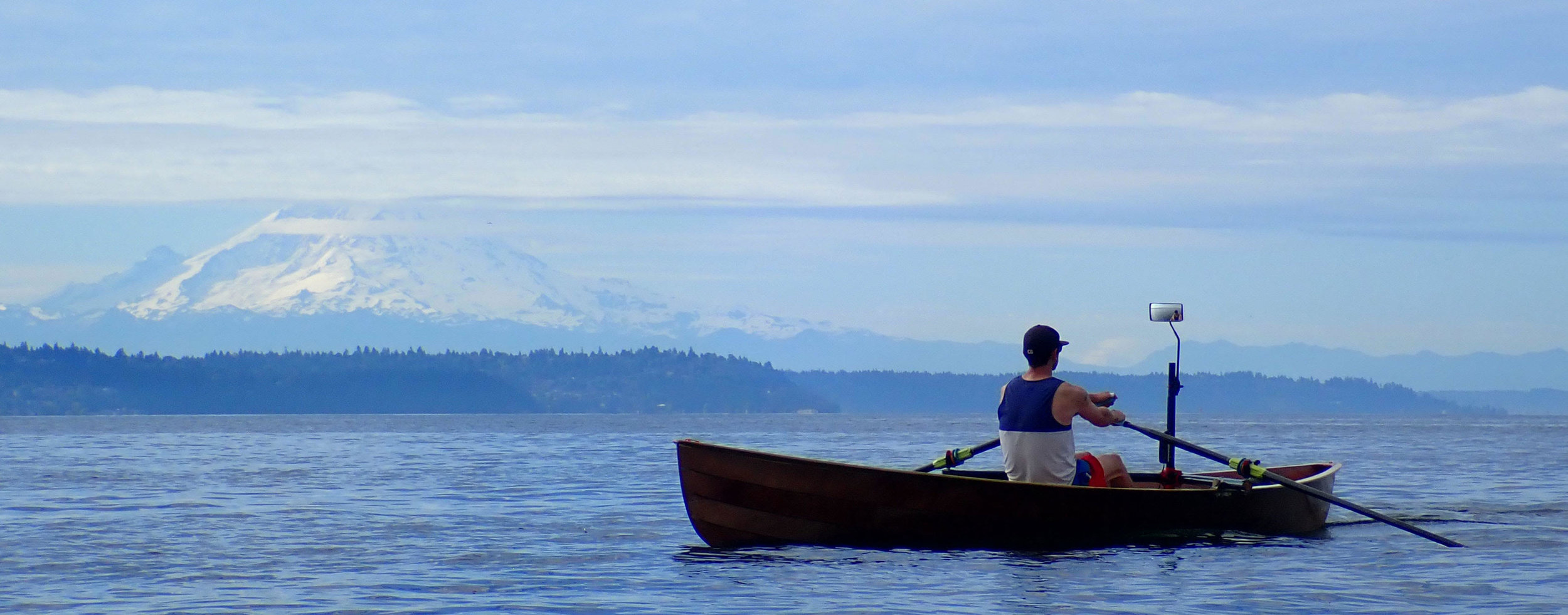

 Nate Rooks, of Seattle, Washington, is a former rower who wanted to build his own, ultimate wooden rowboat. He received the kit and never looked back. He built it, raced it, and was the first solo finisher to finish (in 11th) in the 1st annual Seventy-48 race. Here he is on a training run around Bainbridge Island.

Nate Rooks, of Seattle, Washington, is a former rower who wanted to build his own, ultimate wooden rowboat. He received the kit and never looked back. He built it, raced it, and was the first solo finisher to finish (in 11th) in the 1st annual Seventy-48 race. Here he is on a training run around Bainbridge Island.
